125℃ Solder sleeve wire splices
Applications

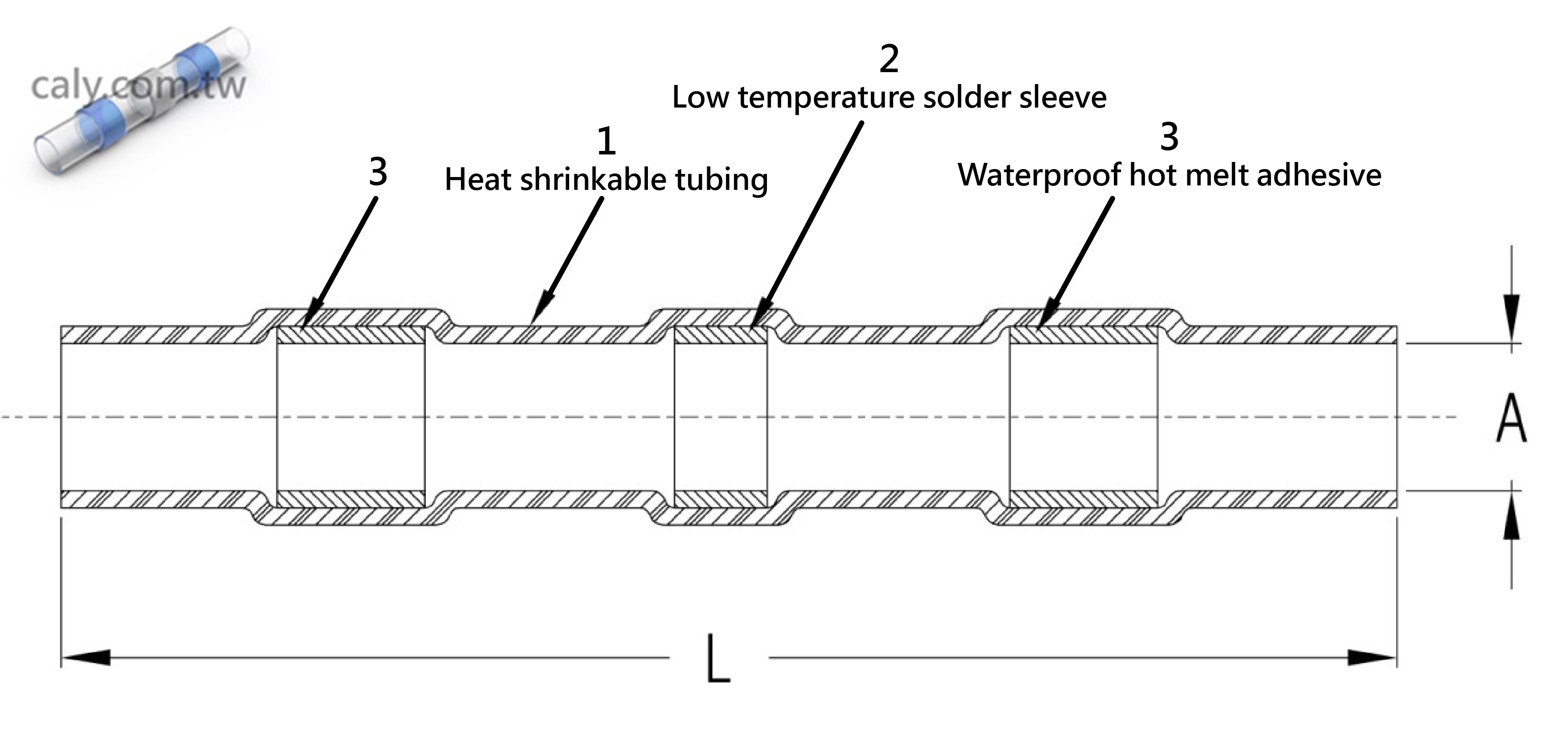

Outer layer of HSTB-R is a transparent polyolefin heat shrink tube, and the inner layer is made of a colored, the easy-to-identify dimension hot melt rubber ring and an environmentally friendly tin ring. Designs of this product is heat shrinkable tube protection for the outer layer of wires, the tin ring welding to the cables, and the sealing of the hot melt adhesive ring on both ends of heat-shrink tube. All connection protection can be completed in one heating process, a simple construction method can reduce installation cost.
Characteristics
Shrinkage ratio 2：1
Waterproof for wiring splices
Transparent sleeve provides precise inspection
Easy control soldering process
MEET RoHS
Operating temperature range
Continuous operating temperature: -55℃ ~ 125℃
Minimum Shrink Temp:80℃
Full recovery temperature: Above 110℃
Starting temperature of solder melt : 160˚C |
| |
|
